Lukin Capillary Electrochemical L-shaped Ceramic Core Salt Bridge L-type Lukin Capillary for Reference Electrode

$39.94$46.60

Clear
SKU: 3256802875932776 Category:

Description

  • DIY Supplies: ELECTRICAL
  • Certification: NONE
  • Origin: Mainland China
modname=ckeditor

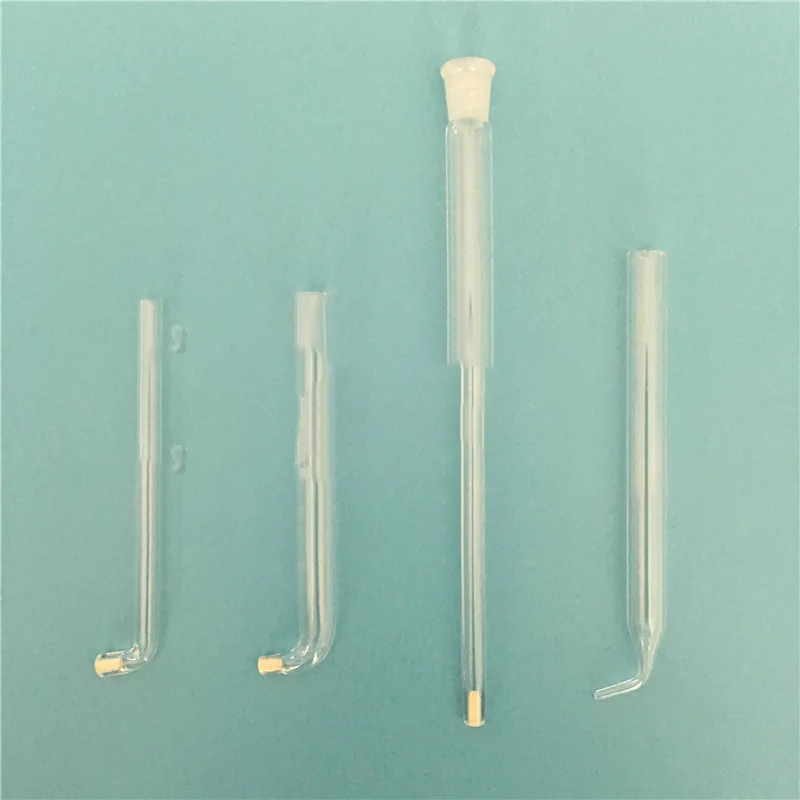

1: Old type Lukin capillary tube-with 6-7mm diameter

2: Straight travel ceramic core salt bridge-with 6-7mm diameter

3: L-shaped ceramic core salt bridge—with 6-7mm diameter

4: L-shaped ceramic core salt bridge—3.8-4.0mm diameter

5: Old style Lujin capillary tube-with 10-11mm diameter

6: Straight-line ceramic core salt bridge—3.8-4.0mm diameter

The electrode in the picture is only for demonstration purposes, if you need a reference electrode, please purchase separately

  About size:

 The old Lujin capillary tube—with reference electrode with diameter of 6-7mm—inner diameter of 7mm, outer diameter of 10.5mm, length of 100mm, straight ceramic core salt bridge—with reference electrode of diameter of 6-7mm—- -Lower end diameter 6mm, upper end diameter 10.5mm, total length 170mmL-type ceramic core salt bridge-with 6-7mm diameter reference electrode ——- inner diameter 7mm outer diameter 10.5mm length 100mm

 L-shaped ceramic core salt bridge-with 3.8-4.0mm diameter reference electrode ——- inner diameter 4mm outer diameter 6mm length 100mm

 The old Lujin capillary tube—with a reference electrode of 10-11mm diameter—inner diameter 11mm, outer diameter 15mm, and length 100mm

 Straight-line ceramic core salt bridge-with reference electrode with diameter of 3.8-4.0mm——-inner diameter 4mm outer diameter 6mm length 80mm

Advantages of ceramic sand core:

1 Ceramic sand core is used at the bottom, the price of seepage is average, the electric potential is stable, and the test effect is good

  2 Convenient operation, just fill the reference electrode solution directly

 3 Easy to clean, recycle, better quality

Porcelain core salt bridge: Just add the solution in the reference electrode directly, and fill it to one-third of the height.

  If you need special specifications, please contact us for custom order 13636410889    Lukin capillary

  Properties: When there is a current flowing through the measuring battery, there is an ohmic potential drop in the solution between the two electrodes, which is more significant for solutions with higher resistivity and larger currents. In order to minimize its impact on the potential measurement, pull the glass tube at the solution end of the reference electrode into a capillary, that is, a Lukin capillary, and make it as close as possible to the working electrode, so that almost no current flows through the measurement loop of the reference electrode. The high-impedance voltmeter measures more accurate potential data.

  Function: The function of the Lujin capillary is to eliminate the resistance overpotential; three electrodes (electrode to be measured, auxiliary electrode, reference electrode), auxiliary electrode and electrode to be measured, change the resistance in the circuit, control the current density of the electrode to be measured, and get Different overpotentials; the reference electrode and the electrode to be measured are used to measure the potential of the electrode to be measured by the cancellation method.

 Use: The tip of the Lukin capillary should be as close to the surface of the research electrode as possible to reduce the ohmic potential drop as much as possible. However, it should not be too close, otherwise it will have a significant shielding effect on the electrode surface and affect the current distribution. In order to reduce the ohmic voltage drop of the solution without producing obvious shielding effect, the distance between the tip and the surface of the research electrode should not be less than the outer diameter of the Lukin capillary.

  2 Preparation, use and maintenance

 [1] 1. Add 3 grams of agar and 97ml of distilled water to the beaker, and heat it on a water bath until it is completely dissolved. Then add 30 grams of KCl and stir thoroughly. After the KCl is completely dissolved, use a dropper or siphon to add this solution to a glass tube that has been bent beforehand, and let it stand until the agar is condensed before use.

  2. Agar-saturated KCl salt bridge cannot be used for solutions containing Ag+, Hg2+ and other ions that interact with Cl- or ClO4- and other substances that interact with K+.

  3. The test temperature above 80℃ will cause damage to the salt bridge. It is best to control the test temperature below 70℃.

  4. After the experiment, the salt bridge needs to be rinsed with deionized water to avoid contamination of the electrode, and then soaked in a saturated KCl solution. Pay attention to frequently add deionized water to prevent the salt bridge from cracking and damage.

5. After the experiment, the saturated calomel electrode should be immersed in saturated KCl solution to prevent deterioration of the composite electrode supplement solution. In future use, you should first check whether the replenishment solution inside the electrode is saturated (generally there will be supersaturated KCl crystals).

 6. Note: It is strictly forbidden to store other items in the beaker for storing saturated calomel electrode and salt bridge, and the dropper placed in it shall not be used for other purposes.
